Gas Purifier
Gas Purifier
SKU:P100
Regular price
$280.00 USD
Regular price
Sale price
$280.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

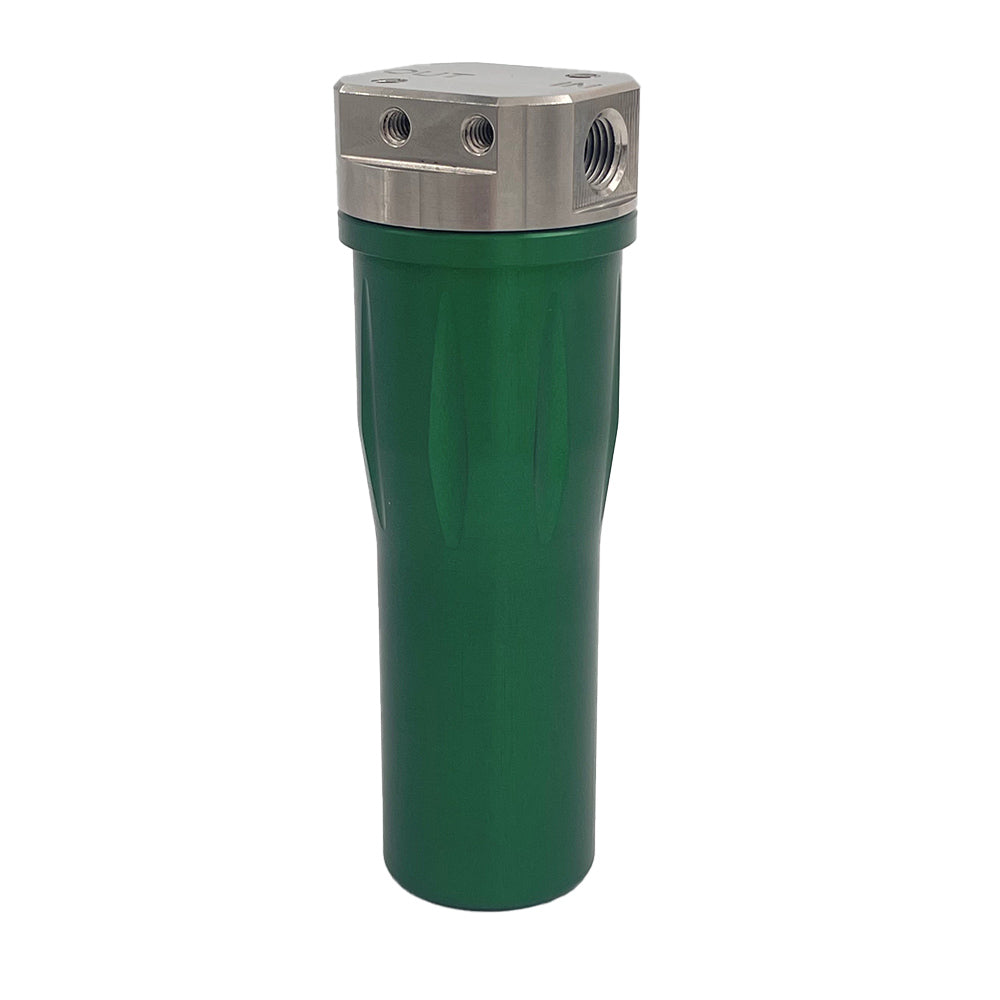

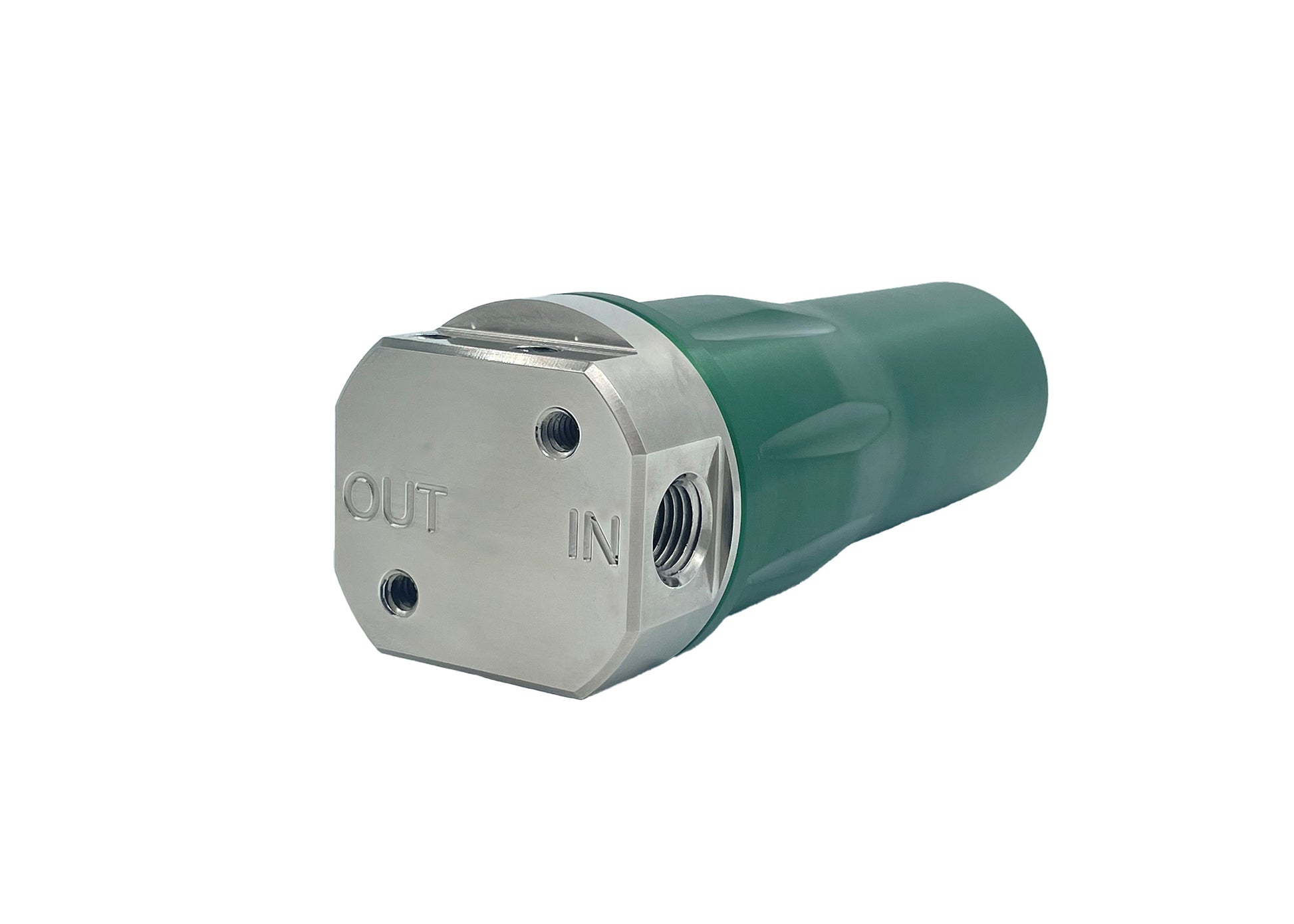

The P100 Gas Purifier is designed to remove oil, water vapor, and particulates from many non-corrosive gases. It prolongs service life of sensitive instruments and manufacturing equipment, while providing more accurate, consistent test results. Purifying cartridges can be replaced without the removal of the purifier from the process line. All products are made from domestically sourced materials and components are machined and assembled in the U.S.A.
FEATURES:
- Material: 6061 Aluminum
- Housing Finish: Green Anodize
- Base Finish: Nickel Plated
- O-Ring Seal: Viton
- 4 Different Replacement Purifier Cartridges that accomplish the removal of foreign matter:
- 13X Molecular Sieve Cartridge (Oil & Water)
- 4A Molecular Sieve Cartridge (Water)
- Activated Charcoal Cartridge (Oil & Heavy Hydrocarbons)
- 5 Micron Sintered Bronze Cartridge (Particulates)
SPECIFICATIONS:
- Max Operating Pressure: 2,000 psi
- Max Oxygen Operating Pressure: 500 psi
- Pressure Drop:
- 0.2 psi for 1 SCFM
- 0.9 psi for 2 SCFM
- 2.4 psi for 3 SCFM
- Dew Point Obtainable: -100°F (-73°C) (1 .5 ppm)
- Temperature Range: -40 to 165°F (-40 to 74°C)
- Inlet & Outlet Connections: ¼” NPT Female
- Weight: 1 lb. 1 oz.
- Height: 6.5"
